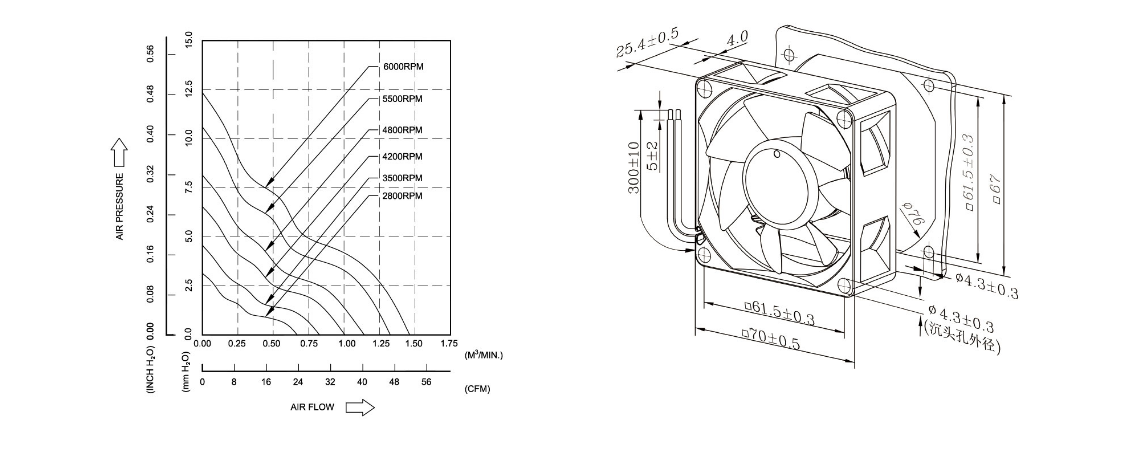

Dimensión total: 70x70x25mm
Material: Impulsor y marco de plástico (clasificación contra incendios UL94V-0)
Cables conductores: UL 1007 AWG#24 o equivalente
Impulsor: 7 cuchillas
Vista de dirección de rotación CCW desde el lado del impulsor
Masa: 70g
| Número de producto | BSR | RPM | VCC | Amperio | Vatio | CFM | m³/H | mmH2O | en H2O | dB-A |
| SA120725-E | B | 2800 | 12 | 0.04 | 0.48 | 23.7 | 40.2 | 3.13 | 0.12 | 28.4 |
| SA120725-L | B | 3500 | 12 | 0.07 | 0.84 | 29.2 | 49.6 | 4.57 | 0,18 | 32.4 |
| SA120725-M | B | 4200 | 12 | 0.12 | 1.44 | 35.6 | 60.4 | 6.54 | 0,26 | 35.8 |
| SA120725-H | B | 4800 | 12 | 0,17 | 2.04 | 40.4 | 68.6 | 8.13 | 0.32 | 40.3 |
| SA120725-U | B | 5500 | 12 | 0,26 | 3.12 | 46.9 | 79.6 | 10.6 | 0.42 | 42.5 |
| SA120725-S | B | 6000 | 12 | 0.33 | 3.96 | 51.7 | 87.8 | 12.3 | 0.49 | 45.1 |
| SA240725-E | B | 2800 | 24 | 0.02 | 0.48 | 23.7 | 40.2 | 3.13 | 0.12 | 28.4 |
| SA240725-L | B | 3500 | 24 | 0.04 | 0,96 | 29.2 | 49.6 | 4.57 | 0,18 | 32.4 |
| SA240725-M | B | 4200 | 24 | 0.06 | 1.44 | 35.6 | 60.4 | 6.54 | 0,26 | 35.8 |
| SA240725-H | B | 4800 | 24 | 0.10 | 2.40 | 40.4 | 68.6 | 8.13 | 0.32 | 40.3 |
| SA240725-U | B | 5500 | 24 | 0.14 | 3.36 | 46.9 | 79.6 | 10.6 | 0.42 | 42.5 |
| SA240725-S | B | 6000 | 24 | 0,18 | 4.32 | 51.7 | 87.8 | 12.3 | 0.49 | 45.1 |
| SA480725-E | B | 2800 | 48 | 0.02 | 0,96 | 23.7 | 40.2 | 3.13 | 0.12 | 28.4 |
| SA480725-L | B | 3500 | 48 | 0.03 | 1.44 | 29.2 | 49.6 | 4.57 | 0,18 | 32.4 |
| SA480725-M | B | 4200 | 48 | 0.04 | 1.92 | 35.6 | 60.4 | 6.54 | 0,26 | 35.8 |
| SA480725-H | B | 4800 | 48 | 0.06 | 2.88 | 40.4 | 68.6 | 8.13 | 0.32 | 40.3 |
| SA480725-U | B | 5500 | 48 | 0.08 | 3.84 | 46.9 | 79.6 | 10.6 | 0.42 | 42.5 |
| SA480725-S | B | 6000 | 48 | 0.10 | 4.80 | 51.7 | 87.8 | 12.3 | 0.49 | 45.1 |
