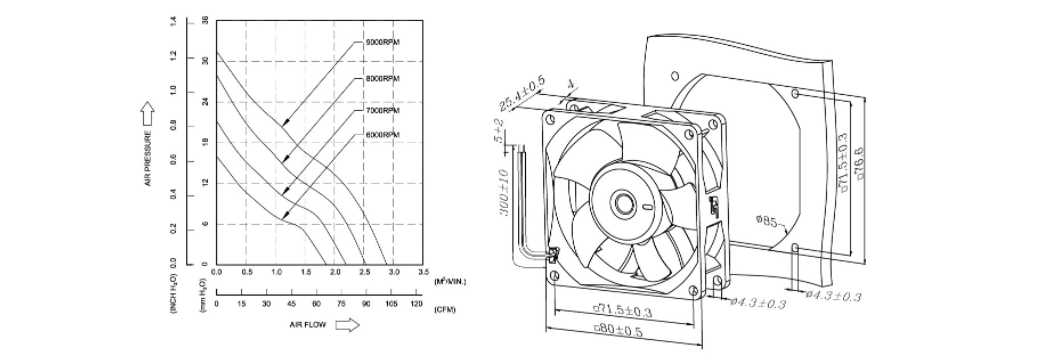

Dimensión total: 80x80x25mm
Material: Impulsor y marco de plástico (clasificación contra incendios UL94V-0)
Cables conductores: UL 1007 AWG#24 o equivalente
Impulsor: 5 palas
Vista de dirección de rotación CCW desde el lado del impulsor
Masa: 98g
| Número de producto | BSR | RPM | VCC | Amperio | Vatio | CFM | m³/H | mmH2O | en H2O | dB-A |
| SA120825-L | B | 6000 | 12 | 0.48 | 5.76 | 66.1 | 112.2 | 16.0 | 0.63 | 50.4 |
| SA120825-M | B | 7000 | 12 | 0.64 | 7.68 | 78.0 | 132.4 | 21.2 | 0.84 | 54.5 |
| SA120825-H | B | 8000 | 12 | 0,92 | 11.0 | 89.8 | 152.4 | 28.0 | 1.10 | 57.5 |
| SA120825-U | B | 9000 | 12 | 1.35 | 16.2 | 102.3 | 173.8 | 31.5 | 1.24 | 60.5 |
| SA240825-L | B | 6000 | 24 | 0,21 | 5.04 | 66.1 | 112.2 | 16.0 | 0.63 | 50.4 |
| SA240825-M | B | 7000 | 24 | 0.32 | 7.68 | 78.0 | 132.4 | 21.2 | 0.84 | 54.5 |
| SA240825-H | B | 8000 | 24 | 0.46 | 11.0 | 89.8 | 152.4 | 28.0 | 1.10 | 57.5 |
| SA240825-U | B | 9000 | 24 | 0.68 | 16.3 | 102.3 | 173.8 | 31.5 | 1.24 | 60.5 |
| SA480825-L | B | 6000 | 48 | 0.12 | 5.76 | 66.1 | 112.2 | 16.0 | 0.63 | 50.4 |
| SA480825-M | B | 7000 | 48 | 0,17 | 8.16 | 78.0 | 132.4 | 21.2 | 0.84 | 54.5 |
| SA480825-H | B | 8000 | 48 | 0,24 | 11.5 | 89.8 | 152.4 | 28.0 | 1.10 | 57.5 |
| SA480825-U | B | 9000 | 48 | 0.33 | 15.8 | 102.3 | 173.7 | 31.5 | 1.24 | 60.5 |
